Pantograph Engraving Machine

A pantograph engraving machine is a tool that scores lettering or patterns into metal, plastic, or wood. What makes it special is the way it is controlled: the operator traces a fixed template with a stylus, for instance a letter stencil. A linkage made of several jointed rods transfers this movement to a rapidly rotating cutter. This linkage is called a pantograph, also known in German as a Storchschnabel (stork’s beak). It usually scales the movement down, so that a hand-sized stencil becomes a small, clean engraving. The human guides the hand, while the machine ensures precision and uniform depth.

Why signs used to look so uniform

Hand-carved lettering always reveals the person behind it. Letters end up different widths, lines different depths. For a nameplate on an office door, that might not matter. For a nameplate on a machine stating serial number and voltage, it does. The pantograph engraving machine solved this problem long before computers ever entered workshops.

It also made small production runs affordable. Anyone needing a hundred identical signs set up the stencil once and worked through it a hundred times. The result was identical every time. Without this technology, a craftsman would have had to carve every single sign by hand, at a corresponding price.

Historically, the machine is important for a second reason as well. It is a direct ancestor of today’s CNC milling machine, that is, a milling machine controlled by a computer program. The basic principle is the same: a template determines the path of the tool. It’s just that today the template exists as a file rather than as a brass stencil.

From the stork’s beak to the cutter

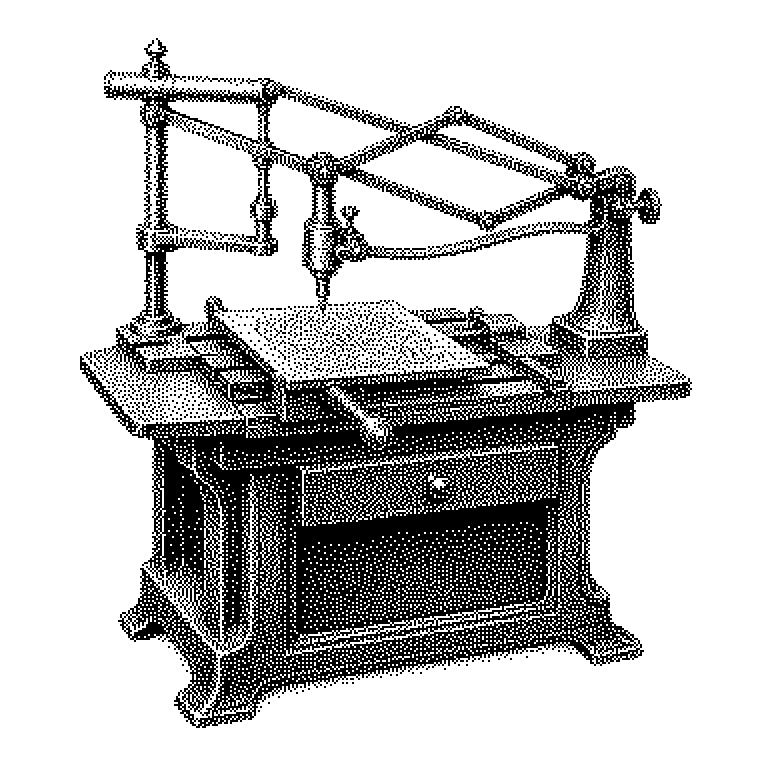

The heart of the machine is a four-bar linkage made of four rods. A stylus sits at one point, the milling head at another, and a third point is fixed in place with screws. Move the stylus, and the cutter travels along a geometrically similar path. Shift the fixed pivot point, and the ratio changes. Reduction ratios commonly range from 2:1 to about 10:1.

The template consists of individual letter stencils that are inserted into a rail. The operator assembles them word by word this way, similar to a type case in letterpress printing. He then traces each letter with the stylus. Meanwhile, the cutter spins at several thousand revolutions per minute, removing material.

A common misconception is that the machine works automatically. It does not. Speed, sequence, and cleanliness depend entirely on the operator. The machine only guarantees that the shape is correct and the depth remains constant, since a stop limits the cutter. Speed and feel are supplied by the human.

Where the technology still turns up today

In industry, the pantograph engraving machine has largely disappeared. For signs, trophies, and jewelry, engraving shops today work with computer-controlled mills or lasers. These are faster, need no sets of stencils, and can handle any typeface that exists as a file.

The machine has survived in niches. Watchmakers, restorers, and toolmakers use it for one-off pieces and repairs. On used-machinery markets, old units from German and Swiss manufacturers can be found for a few hundred euros. Model builders also value it, because it works without any software.

The word pantograph also crops up in a completely different context: the current collector on the roof of an electric locomotive is also called a pantograph. The reason is the same scissor-like mechanism of jointed rods. So anyone reading about a pantograph in a message about rail technology is not referring to the engraving machine.
